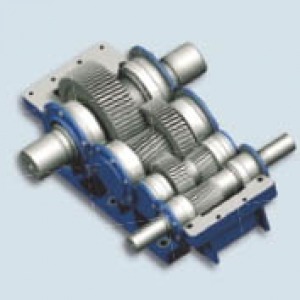

HELICAL GEARBOXES

• 1, 2, 3 or 4-stage configuration
• gear ratio of i_N= 1 – 560
• maximum torque output M₂ ≤ 860 kNm

BEVEL-HELICAL GEARBOXES

• 1, 2, 3 or 4-stage setting
• gear ratio i_N= 1 – 560
• maximum torque output M₂ ≤ 860 kNm

TURBO GEAR UNITS

• 1 or 2-stage setting
• gear ratio i_N= 1 – 20
• maximum output moment M₂ ≤ 300 kNm
• with a speed up to 30.000 rpm and maximum velocity of 200 m/s

EPICYCLIC GEAR UNITS

• up to 4-stage planetary gear boxes
• with gear ratio up to i_N = 2800
• maximum torque output M₂ ≤ 900 kNm

GEARBOXES FOR SPECIAL USE

• our main production programme
• up to weight 100t
• Examples:
  1. • Wind turbine drives
     • Tram axle drives
     • Marine control-pitch propeller drives
     • Mooring winch drives
     • Mining truck axle drives

Trams

• Bevel helical axle drives
  • One stage - hypoid
  • Two stage with cyklopaloid Klingelnberg gearing
• Helical axle drive in many modifications
• Helical axle drive for 100% low-floor tram

Bevel gears

• Bevel cyklopaloid Klingelnberg gearing



Gearboxes for locomotives

• Parts of hydrodynamic gearboxes
• Axle drives
• Auxiliary drive gearboxes:
  • Hydrostatic with bevel-helical stage
  • Bevel-helical gearboxes



Spare parts for locomotives

• Axle wheels and pinions
• Governors
• Diesel pumps
